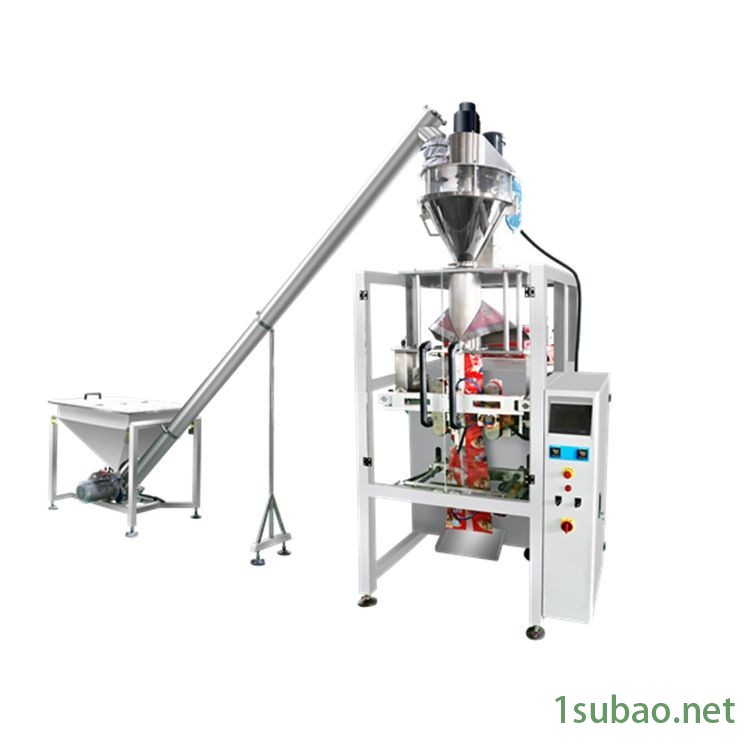

SUN-720大型立式粉剂包装机
SUN-720 LARGEVERTICAL POWDER PACKING MACHINE
技术特点：
1.采用彩色触摸屏和稳定可靠的双轴高精度输出的PLC控制、制袋、计量、充填、封合、打码、切袋一次性完成。
2.气路控制和电路控制电箱独立分离，噪音小，电路更稳定。
3.采用双皮带伺服拉膜：拉膜阻力少，包装袋成型好，更美观，皮带不易磨损。
4.采用伺服控制, 实现高精度定位，尺寸准确。
5.采用外置式放膜机构，包装膜安装更简单、更容易。
6.包装袋的偏差调整只需在触摸屏上调整即可，操作简单。
7.整机采用封闭式机构，有效防止粉尘进入机器内部。
Technical characteristics：
1.PLC control with stablef-reliable biaxial high accuracy output and colortouch screen, bag-making, measuring, filling, printing,cutting , finished inone operation.
2.Separate circuit boxes for pneumatic control and power control. Noise islow, and the circuit is more stable.
3.Film-pulling with servo motor double belt: less pulling resistance, bagis formed in good shape with better appearance, belt is resistant to be worn-out.
4.Double servo control, high precision orientation, size more nicety.
5.External film releasing mechanism: simpler and easier installation ofpacking film.
6.Adjustment of bag deviation just needed to be controled by the touchscreen. Operation is very simple .
7.Close down type mechanism , defending powder into inside of machine.
技术要点：
1.本同采用伺服电机控制，螺杆计量方式，精密度可达±1℅。
2.调整产品重量无需任何工具。
Technical characteristics:
1.Themachine adopt servo motor control, screw measuring, precision ±1℅.
2.Adjustmentproduct weight without any tools.
适用包装范围：
适合包装粉剂： 奶粉，豆粉，面粉，等一切粉类。
Application：
Suitablepacking powder : milk powder , bean powder ,etc.
技术参数（Technical parameters）:
机型（Type） | SUN-520 |
制袋长度(Bag length) | 80-400mm(L) |
制袋宽度(Bag width) | 80-250mm(W) |
薄膜宽度(Max width of roll film) | 520mm |
包装速度(Packing speed) | 5-50bags/min |
计量范围(Measuring range) | 3000ml(Max) |
气压(Air consumption) | 0.65Mpa |
耗气量(Gas consumption) | 0.4m³/min |
电压（Power voltage） | 220VAC/50HZ |
功率（Power ） | 4Kw |
外型尺寸（Dimension） | (L)1500×(W)1140×(H)1540mm |
机器重量（Deadwight of machine） | 550KG |
